Compact Circularly Polarized RFID Tag Antenna with an Embedded L-shaped Feedline for Metallic Objects
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)61-64
Abstract

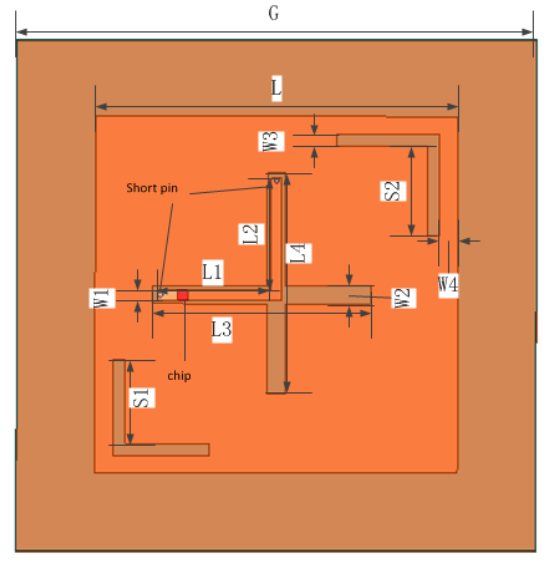

An ultra-high frequency (UHF) passive radio frequency identification (RFID) tag antenna with circular polarization for metallic objects is proposed. Using a novel and embedded L shape microstrip line to feed, a good performance of impedance matching is achieved. The proposed antenna can cover the whole operating frequency of UHF RFID system from 860 MHz to 960 MHz. The 3-dB circular polarization bandwidth is 7 MHz (from 916 to 923 MHz). The optimized antenna has a high gain of −5.5 dBi in 0 degree direction. The main parameters of the antenna are also discussed.
Citation
Zhibin He, Sailing He, Hui Liu, Cheng Liu, and Yoichi Okuno, "Compact Circularly Polarized RFID Tag Antenna with an Embedded L-shaped Feedline for Metallic Objects," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)61-64
References

1. Marrocco, Gaetano, "The art of UHF RFID antenna design: impedance-matching and size-reduction techniques," IEEE Antennas and Propagation Magazine, Vol. 50, No. 1, 66–79, February 2008.
doi:10.1109/map.2008.4494504        Google Scholar

2. Koskinen, Tomi V., Harish Rajagopalan, and Yahya Rahmat‐Samii, "A thin multi‐slotted dual patch UHF‐band metal‐mountable RFID tag antenna," Microwave and Optical Technology Letters, Vol. 53, No. 1, 40–47, November 2010.
doi:10.1002/mop.25622        Google Scholar

3. Tseng, Yen-Ming, Shang-Huang Kuo, Horng-Dean Chen, and Chow-Yen-Desmond Sim, "Circularly polarized circular microstrip RFID tag antenna," 2012 Asia Pacific Microwave Conference Proceedings, 1142–1144, December 2012.
doi:10.1109/apmc.2012.6421850        Google Scholar

4. Chen, Horng‐Dean, Shang‐Huang Kuo, and Jing‐Lun Jheng, "Design of compact circularly polarized radio frequency identification tag antenna for metallic object application," Microwave and Optical Technology Letters, Vol. 55, No. 7, 1481–1485, April 2013.
doi:10.1002/mop.27607        Google Scholar

5. Chen, Horng-Dean, Shang-Huang Kuo, Chow-Yen-Desmond Sim, and Ching-Han Tsai, "Coupling-Feed Circularly Polarized RFID Tag Antenna Mountable on Metallic Surface," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 5, 2166–2174, May 2012.
doi:10.1109/tap.2012.2189702        Google Scholar

6. Pozar, D. M., Microwave Engineering, 3rd Edition, No. 2, Wiley, New York, 2005.        Google Scholar

7. Son, H.-W. and C.-S. Pyo, "Design of RFID tag antennas using an inductively coupled feed," Electronics Letters, Vol. 41, No. 18, 994–996, September 2005.
doi:10.1049/el:20051536        Google Scholar

8. Chen, Horng-Dean, Chow-Yen-Desmond Sim, and Shang-Huang Kuo, "Compact Broadband Dual Coupling-Feed Circularly Polarized RFID Microstrip Tag Antenna Mountable on Metallic Surface," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 12, 5571–5577, December 2012.
doi:10.1109/tap.2012.2210273        Google Scholar
