Abstract

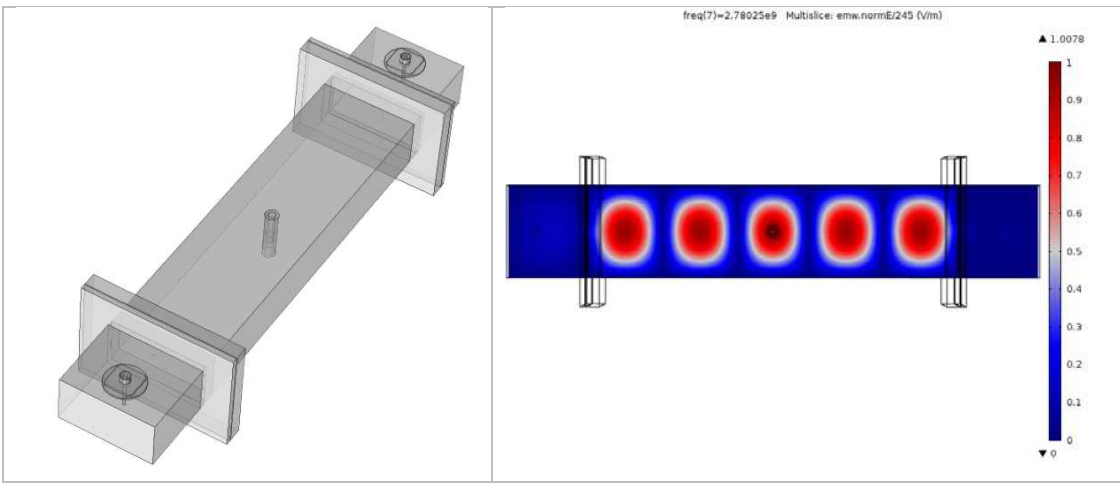

BiNbO4 ceramics were prepared by the solid state reaction, and the as-prepared samples were treated at temperatures between 600 and 1200◦ C. The samples structure was ana- lyzed by X-Ray Diffraction and the morphology was studied using Scanning Electron Microscopy. The low-perturbation resonant cavity method was used to calculate the dielectric properties of the ceramic material. The samples heat treated at temperatures above 800◦ C present the BiNbO4 crystal phase, being the predominant phase on the samples treated above 950◦ C. The samples treated below 900◦ C present the Bi5 Nb3 O15 secondary phase, which seems to be responsible for the highest dielectric constant values observed at room temperature. The dielectric losses of all samples are always lower than 10−4 . The electromagnetic fields, inside the cavity, without and with the cylindrical sample were simulated using the COMSOL Multiphysics software.

1. Cao, G., Nanostructures and Nanomaterials, Synthesis, Properties and Applications, World Scientific Publishing Co, London, 2004. Google Scholar

2. Płońska, M. and D. Czekaj, "Studies of Temperature and Fabrication Methods Influence on Structure and Microstructure of BiNbO4 Microwave Electroceramics," Archives of Metallurgy and Materials, Vol. 56, No. 4, 1169-1175, January 2011.
doi:10.2478/v10172-011-0131-8 Google Scholar

3. Radha, R., H. Muthurajan, N. Koteswara Rao, Sivaram Pradhan, U.N. Gupta, R.K. Jha, S.A. Mirji, and V. Ravi, "Low temperature synthesis and characterization of BiNbO4 powders," Materials Characterization, Vol. 59, No. 8, 1083–1087, August 2008.
doi:10.1016/j.matchar.2007.08.026 Google Scholar

4. Kim, Eung Soo and Woong Choi, "Effect of phase transition on the microwave dielectric properties of BiNbO4," Journal of the European Ceramic Society, Vol. 26, No. 10-11, 1761–1766, January 2006.
doi:10.1016/j.jeurceramsoc.2005.09.003 Google Scholar

5. Filho, R. Carneiro, J. H. Araújo, M. F. Ginani, A. G. d’Assunção, R. A. Martins, A. G. d’Assunção, and L. M. Mendonça, "Simulation and measurement of inset‐fed microstrip patch antennas on BiNbO<sub>4</sub> substrates," Microwave and Optical Technology Letters, Vol. 52, No. 5, 1034–1036, March 2010.
doi:10.1002/mop.25098 Google Scholar

6. Almeida, Cristiane Gomes, Heloysa Martins Carvalho Andrade, Artur José Santos Mascarenhas, and Luciana Almeida Silva, "Synthesis of nanosized β-BiTaO4 by the polymeric precursor method," Materials Letters, Vol. 64, No. 9, 1088–1090, May 2010.
doi:10.1016/j.matlet.2010.02.020 Google Scholar

7. Brinker, C. J. and G. W. Scherer, Sol-Gel Science: The Physics and Chemistry of Sol-Gel Processing, Academic Press, New York, 1989. Google Scholar

8. Henry, F. and A. J. Berteaud, "New Measurement Technique for the Dielectric Study of Solutions and Suspensions," Journal of Microwave Power, Vol. 15, No. 4, 233–242, January 1980.
doi:10.1080/16070658.1980.11689206 Google Scholar

9. Costa, L. C., S. Devesa, P. André, and F. Henry, "Microwave dielectric properties of polybutylene terephtalate (PBT) with carbon black particles," Microwave and Optical Technology Letters, Vol. 46, No. 1, 61–63, May 2005.
doi:10.1002/mop.20901 Google Scholar

10. Costa, L. C. and F. Henry, "The Impact of Blue Inorganic Pigments on the Microwave Electrical Properties of Polymer Composites," International Journal of Microwave Science and Technology, Vol. 2012, 1–5, February 2012.
doi:10.1155/2012/628237 Google Scholar

11. Henry, F., "Contribution à l'étude des processus d'hydratation en milieu solide et liquide par relaxation diélectrique en micro-ondes. Développement de la métrologie," France, 1982. Google Scholar

Luis Cadillon Costa

C. S. Ferreira

M. P. F. Graca

T. Santos
