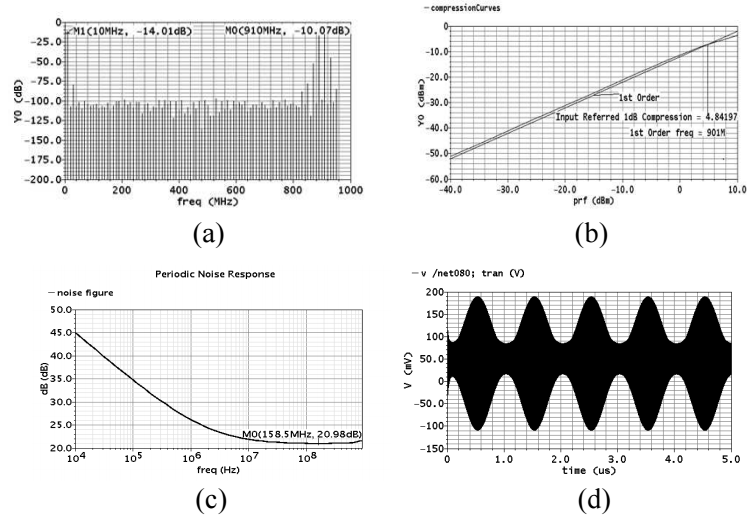

A high gain, high linearity, low noise I/Q up-conversion mixer and a programmable gain power pre-amplifier are designed in a standard 0.18 µm CMOS process, which are both the critical building blocks in a transmitter for UHF RFID reader systems. To comply with the system specifications, both low noise figure (NF) and high LO-IF isolation for the up-conversion mixer are required, so the I/Q mixer topology based on two coupled double-balanced Gilbert cells is applied. Besides, other techniques such as the pseudo-differential structure and the ac- tive load are also used to improve its linearity, gain, etc.. As for the power pre-amplifier, a programmable gain fully differential cascode configuration is employed to satisfy the emission spectrum requirements from various application environments. A 3-bit control word is used to switch the three parallel trans-conductance transistors in each side to change the output power flexibly. And the source inductance negative feedback technique is adopted to achieve a good trade-off among noise matching, impedance matching, linearity and gain. From a single 1.8 V power supply, simulation results show that the up-conversion mixer has a total conversion gain of 4 dB, an input 1 dB compression point (IP1 dB) of 4.84 dBm, and an input NF of less than 20.9 dB. The power pre-amplifier has an output 1 dB compression point (OP1 dB) of better than 2.8 dBm, a gain of above 7 dB, and a good input impedance matching.

Citation

Debo Wang, Cheng-Hong Dong, Luo-Si Gao, Yufeng Guo, Changchun Zhang, and Yi Zhang, "A CMOS I/Q Up-conversion Mixer and a Power Pre-amplifier for UHF RFID Reader Systems," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)125-129

References

1. EPC UHf radio frequency identity protocols: Class 1 Generation 2 UHF RFID, EPC Global, 2007. Google Scholar

2. EPCTM radio-frequency identity protocols Class-1 Generation-2 UHF RFID protocol for communications at 860 MHz–960 MHz, 2004 Sep, September 2004. Google Scholar

3. Maas, S., "Mixer technologies for modern microwave and wireless systems," Sep., 2002, September 2002. Google Scholar

4. Terrovitis, M.T. and R.G. Meyer, "Noise in current-commutating CMOS mixers," IEEE Journal of Solid-State Circuits, Vol. 34, No. 6, 772–783, June 1999.
doi:10.1109/4.766811 Google Scholar

5. Zhang, F., E. Skafidas, W. Shieh, B. Yang, B. N. Wicks, and Z. Liu, "A 60-GHz Double-Balanced Mixer for Direct Up-Conversion Transmitter on 130-nm CMOS," 1–4, October 2008.
doi:10.1109/csics.2008.33 Google Scholar

6. Xi, Z. G., Qin Y. J. and Su Y. F. and al. et, A 1. 9 GHz high linearity up-conversion mixer, Z. G, 2007. Google Scholar

7. Xiangning, Fan, Zhu Chisheng, and Zhang Lei, "A 2.4 GHz RF CMOS up-conversion mixer for wireless sensor networks nodes," 2009 International Conference on Wireless Communications & Signal Processing, 1–5, November 2009.
doi:10.1109/wcsp.2009.5371589 Google Scholar

8. Choi, Kyonggon, Minsu Kim, HyungChul Kim, Hanjin Cho, Jaeyong Cho, Sungchul Yoo, Kyoungon Yang, Sungchan Jung, Sunghan Ryu, and Youngoo Yang, "CMOS up-conversion mixer with adaptive bias circuit for UHF RFID reader," 20–23, December 2009.
doi:10.1109/rfit.2009.5383697 Google Scholar

9. Chi, B. Y., Yu Z. P. and Shi B. X. and Analysis Design of CMOS RFIC and Press Tsinghua University, and B. X. Shi, Analysis and Design of CMOS RFIC, Tsinghua University Press, Beijing, China, 2006., Tsinghua University Press, 2006. Google Scholar
