Abstract

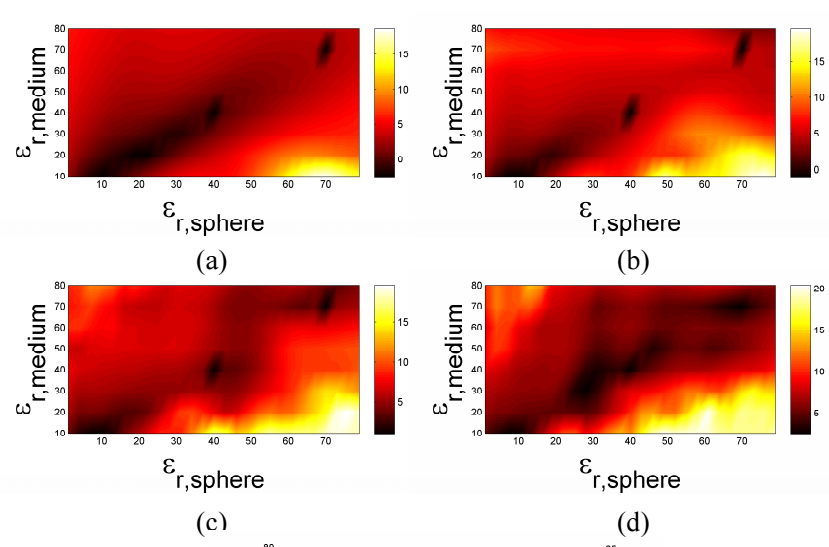

In this communication, an analysis on the accuracy of the method of moments solution of full 3D vectorial electromagnetic forward scattering problem is presented. Although different mathematical techniques are developed for determination of the error rate of method of moments [1–6], this paper presents a numerical approach to this problem. In contrast to weak formulations of method of moments as in [7], we use a dyadic Green function based approach. We adopted the pulse functions as basis functions and obtained equations are weighted by the dirac- delta functions. In fact such a choice obliges us to calculate the hypersingular integrals of the components of the well known dyadic Green function. We utilize from [8] for the Cauchy principal value of these singular integrals. To be able to decrease memory requirement and computational complexity, bi-conjugate gradient method is applied togather with the fast fourier transform (FFT) algorithm for the matrix multiplication. An accuracy analysis is made by comparing the simulated fields with the analytical expressions of the scattering field from a dielectric sphere. The results show that such an dyadic Green function based implementation of the method of moments works sufficiently well for a wide range of various parameters.

1. Warnick, K. F. and W. C. Chew, "Accuracy of the method of moments for scattering by a cylinder," IEEE Transactions on Microwave Theory and Techniques, Vol. 48, No. 10, 1652-1660, 2000.
doi:10.1109/22.873892 Google Scholar

2. Warnick, K. F. and W. C. Chew, "Error analysis of scattering amplitudes and RCS," IEEE Antennas and Propagation Society International Symposium, Vol. 4, IEEE, 2002.
doi:10.1109/aps.2002.1017055 Google Scholar

3. Warnick, K. F. and W. C. Chew, "Error analysis of the moment method," IEEE Antennas and Propagation Magazine, Vol. 46, No. 6, 38-53, 2004.
doi:10.1109/map.2004.1396735 Google Scholar

4. Warnick, K. F., "An intuitive error analysis for FDTD and comparison to MoM," IEEE Antennas and Propagation Magazine, Vol. 47, No. 6, 111-115, 2005.
doi:10.1109/map.2005.1608751 Google Scholar

5. Hamlett, N. A. and W. Wasylkiwskyj, "A performance baseline for the convergence of electromagnetic integral-equation calculations using pulse functions," IEEE Transactions on Antennas and Propagation, Vol. 54, No. 5, 1523-1537, 2006.
doi:10.1109/tap.2006.872598 Google Scholar

6. Tyzhnenko, A. G. and Y. V. Ryeznik, "Estimates of accuracy and efficiency of a MoM algorithm in for 2-D screens," Progress In Electromagnetics Research, Vol. 71, 295-316, 2007.
doi:10.2528/pier07030603 Google Scholar

7. Zwamborn, P. and P. M. Van den Berg, "The three dimensional weak form of the conjugate gradient FFT method for solving scattering problems," IEEE Transactions on Microwave Theory and Techniques, Vol. 40, No. 9, 1757-1766, 1992.
doi:10.1109/22.156602 Google Scholar

8. Gao, G., C. Torres-Verdin, and T. M. Habashy, "Analytical techniques to evaluate the integrals of 3D and 2D spatial dyadic Green's functions," Progress In Electromagnetics Research, Vol. 52, 47-80, 2005.
doi:10.2528/pier04070201 Google Scholar

9. Chew, W. C. and Y. M. Wang, "Reconstruction of two-dimensional permittivity distribution using the distorted Born iterative method," IEEE Transactions on Medical Imaging, Vol. 9, No. 2, 218-225, 1990.
doi:10.1109/42.56334 Google Scholar

10. Van Den Berg, P. M. and R. E. Kleinman, "A contrast source inversion method," Inverse Problems, Vol. 13, No. 6, 1607, 1997.
doi:10.1088/0266-5611/13/6/013 Google Scholar

11. Colton, D., H. Haddar, and M. Piana, "The linear sampling method in inverse electromagnetic scattering theory," Inverse Problems, Vol. 19, No. 6, S105, 2003.
doi:10.1088/0266-5611/19/6/057 Google Scholar

12. Kirsch, A. and N. Grinberg, The Factorization Method for Inverse Problems, Vol. 36, Oxford University Press, 2008. Google Scholar

13. Akinci, M. N. and M. Cayoren, "Microwave subsurface imaging of buried objects under a rough airsoil interface," Remote Sensing Letters, Vol. 5, No. 8, 703-712, 2014. Google Scholar

14. Guren, O., et al. "Surface impedance based microwave imaging method for breast cancer screening: Contrast-enhanced scenario," Physics in Medicine and Biology, Vol. 59, No. 19, 5725, 2014. Google Scholar

15. Chang, D. C. and J.-X. Zheng, "Electromagnetic modeling of passive circuit elements in MMIC," IEEE Transactions on Microwave Theory and Techniques, Vol. 40, No. 9, 1741-1747, 1992.
doi:10.1109/22.156600 Google Scholar

16. Aksun, M. I., "A robust approach for the derivation of closed-form Green's functions," IEEE Transactions on Microwave Theory and Techniques, Vol. 44, No. 5, 651-658, 1996.
doi:10.1109/22.493917 Google Scholar

17. Richmond, J., "Scattering by a dielectric cylinder of arbitrary cross section shape," IEEE Transactions on Antennas and Propagation, Vol. 13, No. 3, 334-341, 1965.
doi:10.1109/tap.1965.1138427 Google Scholar

18. Harrington, R. F. and J. L. Harrington, Field Computation by Moment Methods, Oxford University Press, 1996. Google Scholar

19. Gan, H. and W. C. Chew, "A discrete BCG-FFT algorithm for solving 3D inhomogeneous scatterer problems," Journal of Electromagnetic Waves and Applications, Vol. 9, No. 10, 1339-1357, 1995.
doi:10.1163/156939395x00082 Google Scholar

Mehmet Nuri Akinci

Mehmet Cayoren

Onan Guren
