Chaos Generation Utilizing Optically Square-wave-injected Semiconductor Lasers

Chen-Wei Fu,

Chen-Wei Fu

Yuan Ze University, Taiwan

Homepage

Yu-Shan Juan,

Yu-Shan Juan

Yuan Ze University, Taiwan

Homepage

Shao-Wei Peng

Yuan Ze University, Taiwan

Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)69-72

Abstract

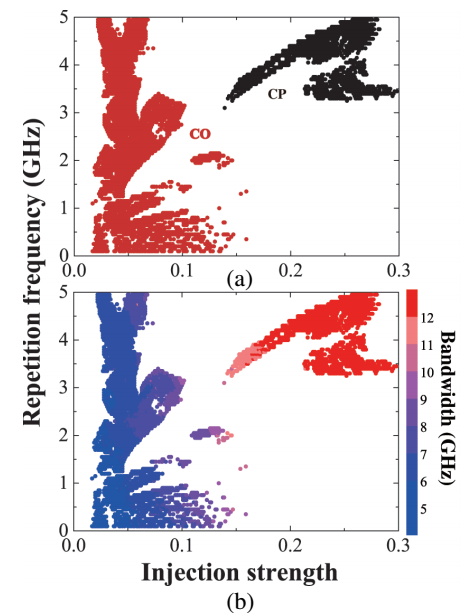

Benefiting from a non-zero value of the linewidth enhancement factor which leads to a variety of dynamics different from any other lasers, the broad bandwidth of chaos can be easily generated. There are several applications in chaotic laser, such as broadband random-bit generation, ranging, and secured communications. In the past two decays, most studies of the chaos generations focused on the nonlinear dynamics of the traditional continuous wave (cw) injection and dynamical pulse and sine wave injection. In this work, we study chaos generation utilizing an optically square-wave-injected semiconductor laser with tunable duty cycle. By injecting a slave laser with periodic optical square-wave at specific parameters, chaos oscillation and chaos pulsing can be generated individually. Compared with continuous wave injection with the same injected conditions, the chaos oscillation generated by square-wave injection shows larger bandwidth and more complex behaviors. Furthermore, if the operating variables are adjusted to the center of the chaos area in the dynamical mapping, the waveforms of power spectra of the generated chaos are much smoother and broader. In this paper, the distribution map of chaos oscillation and pulsing oscillation are investigated. When the duty cycle is operated at high level, chaos oscillation is observed. On the other hand, if we operate the condition at high repetition rate and strong injection strength, nonlinear dynamics is driven into the chaos pulsing states and the bandwidth of chaos pulsing is two times larger than chaos oscillation which is operated in week injection strength. The three parameters, duty cycle, repetition rate, and injection strength, all play important roles in chaos generation utilizing optical square-wave injection system.

Citation

Chen-Wei Fu, Yu-Shan Juan, and Shao-Wei Peng, "Chaos Generation Utilizing Optically Square-wave-injected Semiconductor Lasers," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)69-72

References

1. Mork, J., B. Tromborg, and J. Mark, "Chaos in semiconductor lasers with optical feedback: theory and experiment," IEEE Journal of Quantum Electronics, Vol. 28, No. 1, 93–108, 1992.
doi:10.1109/3.119502 Google Scholar

2. Simpson, T. B., J. M. Liu, A. Gavrielides, V. Kovanis, and P. M. Alsing, "Period-doubling cascades and chaos in a semiconductor laser with optical injection," Physical Review A, Vol. 51, No. 5, 4181–4185, May 1995.
doi:10.1103/physreva.51.4181 Google Scholar

3. Lin, Fan-yi and Jia-Ming Liu, "Nonlinear dynamics of a semiconductor laser with delayed negative optoelectronic feedback," IEEE Journal of Quantum Electronics, Vol. 39, No. 4, 562–568, April 2003.
doi:10.1109/jqe.2003.809338 Google Scholar

4. Liao, Yi-Huan, Jia-Ming Liu, and Fan-Yi Lin, "Dynamical Characteristics of a Dual-Beam Optically Injected Semiconductor Laser," IEEE Journal of Selected Topics in Quantum Electronics, Vol. 19, No. 4, 1500606–1500606, July 2013.
doi:10.1109/jstqe.2012.2236822 Google Scholar

5. Mogensen, F., H. Olesen, and G. Jacobsen, "Locking conditions and stability properties for a semiconductor laser with external light injection," IEEE Journal of Quantum Electronics, Vol. 21, No. 7, 784–793, July 1985.
doi:10.1109/jqe.1985.1072760 Google Scholar

6. Mukai, Takaaki and Kenju Otsuka, "New route to optical chaos: Successive-subharmonic-oscil- lation cascade in a semiconductor laser coupled to an external cavity," Physical Review Letters, Vol. 55, No. 17, 1711–1714, October 1985.
doi:10.1103/physrevlett.55.1711 Google Scholar

7. Lin, Fan-Yi and Meng-Chiao Tsai, "Chaotic communication in radio-over-fiber transmission based on optoelectronic feedback semiconductor lasers," Optics Express, Vol. 15, No. 2, 302, January 2007.
doi:10.1364/oe.15.000302 Google Scholar

8. Lin, Fan-Yi and Jia-Ming Liu, "Chaotic radar using nonlinear laser dynamics," IEEE Journal of Quantum Electronics, Vol. 40, No. 6, 815–820, June 2004.
doi:10.1109/jqe.2004.828237 Google Scholar

9. Lin, F.-Y. and J.-M. Liu, "Chaotic Lidar," IEEE Journal of Selected Topics in Quantum Electronics, Vol. 10, No. 5, 991–997, September 2004.
doi:10.1109/jstqe.2004.835296 Google Scholar

10. Hirano, Kunihito, Taiki Yamazaki, Shinichiro Morikatsu, Haruka Okumura, Hiroki Aida, Atsushi Uchida, Shigeru Yoshimori, Kazuyuki Yoshimura, Takahisa Harayama, and Peter Davis, "Fast random bit generation with bandwidth-enhanced chaos in semiconductor lasers," Optics Express, Vol. 18, No. 6, 5512, March 2010.
doi:10.1364/oe.18.005512 Google Scholar

11. Simpson, T. B., J. M. Liu, A. Gavrielides, V. Kovanis, and P. M. Alsing, "Period-doubling cascades and chaos in a semiconductor laser with optical injection," Physical Review A, Vol. 51, No. 5, 4181–4185, May 1995.
doi:10.1103/physreva.51.4181 Google Scholar
