Calculation of Shielding Effectiveness of an Apertured Rectangular Cavity Against Planar Electromagnetic Pulses
By
Chongqing Jiao,
    avatar

    Chongqing Jiao

    North China Electric Power University, China

    Homepage

Shuai Niu,
    avatar

    Shuai Niu

    North China Electric Power University, China

    Homepage

Xiaoning Shi
    avatar

    Xiaoning Shi

    North China Electric Power University, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)239-245
Abstract

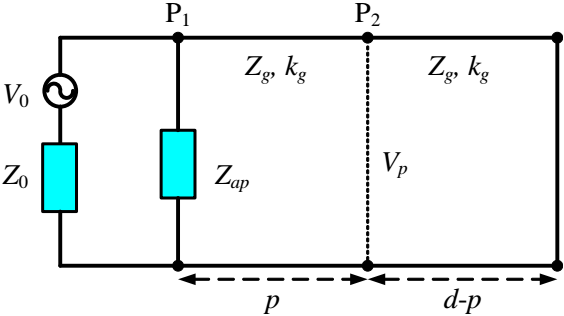

Based on the equivalent circuit method and the Fourier transform technique, an approximate analytical model for calculating the shielding effectiveness of an apertured rectan- gular cavity against planar electromagnetic pulse is presented. The validity of the theoretical model is verified by the comparison with the full-wave electromagnetic simulation software CST. The effects of the aperture’s shape and size, and pulse width on the pulse shielding effectiveness are analyzed.
Citation
Chongqing Jiao, Shuai Niu, and Xiaoning Shi, "Calculation of Shielding Effectiveness of an Apertured Rectangular Cavity Against Planar Electromagnetic Pulses," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)239-245
