An X-band Substrate Integrated Waveguide Vivaldi Array Antenna
By
Jingyu Han,
    avatar

    Jingyu Han

    Harbin Institute of Technology, China

    Homepage

Wei Li,
    avatar

    Wei Li

    Harbin Institute of Technology, China

    Homepage

Xiaowei Liu,
    avatar

    Xiaowei Liu

    Harbin Institute of Technology, China

    Homepage

Ying Suo
    avatar

    Ying Suo

    Harbin Institute of Technology, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1804-1808
Abstract

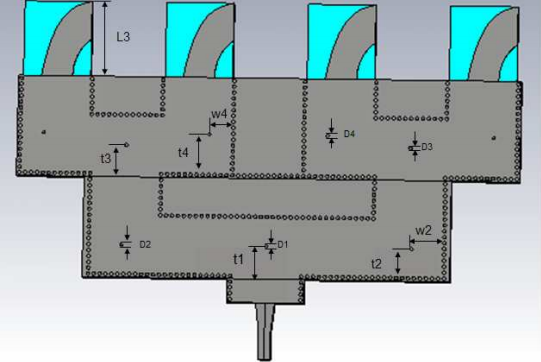

In this paper, a kind of compact X-band Vivaldi array antenna printed on a sub- strate is proposed and designed. The antenna is consisted of 4 Vivaldi structure radiation elements fed by an equal power divider with substrate integrated waveguide technology. The Vivaldi el- ement is antipodal structure composed with an index gradient microstrip line are on both sides of the substrate. The reflection coefficient of the substrate integrated waveguide Vivaldi array antenna is less than −10 dB from 8.9 GHz to 10.06 GHz in X-band. The gain of the array antenna is 14 dB, and the main lobe width is about 17.3◦ with side lobe level less than −12 dB.
Citation
Jingyu Han, Wei Li, Xiaowei Liu, and Ying Suo, "An X-band Substrate Integrated Waveguide Vivaldi Array Antenna," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1804-1808
References

Download Full Article (PDF ) Wire media illustration
