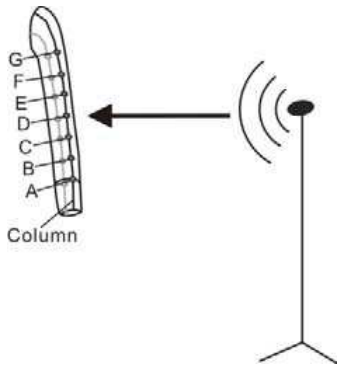

This study proposes a new method of shielding effectiveness (SE) based on NURBS curve, which aim is to address current non-effective method to describe the SE distribution of electromagnetic shielding (EMS) clothing. Moreover, the SE of local clothing can be fitted with the curve to observe the distribution. A testing method of key points is introduced to test the SE of the local clothing. Some concrete functions and program steps of curve fitting are listed. And then a distribution image of the SE on arm position is drawn. Results show that the proposed algorithm can accurately draw a 3D image of the SE of the local clothing and can reveal the distribution of electromagnetic wave on the local human body.

Citation

Yuna Chen, Zhe Liu, Xing Rong, Ruili Sun, Xiuchen Wang, and Qianxue Zheng, "Shielding Effectiveness Fitting of Local Electromagnetic Shielding Clothing Based on Human Figure," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)749-753
