PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
670 W Single-frequency Retrievable Multi-tone All-fiber MOPA
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)2289-2293
Abstract

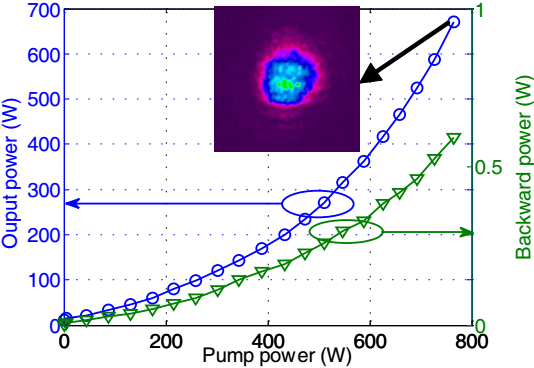

We demonstrated a single-frequency retrievable multi-tone all-fiber laser in master- oscillator power-amplification (MOPA) configuration with the highest recorded power of 670 W. The seed laser runs in multi-tone regime by phase modulating a single-frequency fiber laser using a sine wave signal. Power amplification of the multi-tone master oscillator is then implemented by four cascaded all-fiber power amplifier and a power scaling up to 670 W is achieved. A proof- of-concept experiment for retrieving single-frequency laser from the high power multi-tone laser is carried out by implementing a demodulation signal, which is π phase shift of the modulation signal, on the output laser at a relative low power level. Results indicated that the single- frequency laser can be retrieved with a sideband suppression of more than 20 dB at the power level of 670 W. This method may provide a feasible way for power scaling of single-frequency laser over the SBS limitation in fiber amplifier.
Citation
Rumao Tao, Rongtao Su, Xiaolin Wang, X. J. Xu, and Pu Zhou, "670 W Single-frequency Retrievable Multi-tone All-fiber MOPA," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)2289-2293
References
