Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1217-1220
Abstract
We investigated the functionalization of photonic crystals slabs with aptamers for
the label-free detection of biomolecules. Photonic crystal slabs are slab waveguides with a periodic
nanostructure that supports quasi guided modes coupling to far field radiation. Measurements

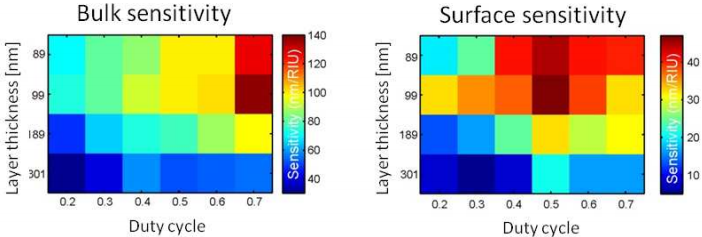

were performed with light at normal incidence to the photonic crystal slab. The influence of the
nanostructure duty cycle as well as the high index layer thickness is investigated for the surface
and the bulk sensitivity. Nanoimprint lithography with subsequent deposition of a high index
layer and biofunctionlization is presented as one approach for fabricating photonic crystal slab
biosensors. In comparison photonic crystal slabs fabricated by injection-molding are considered.
Oblique angle layer deposition is introduced as a means to achieve structured high index layers.
Results obtained with wavelength dependent measurements are compared to simple intensity
measurements in a particular wavelength range. Both methods are applicable for label-free
detection. In a spectrometer-free setup we measured the binding kinetics of a 250 nM solution of
the protein thrombin to the photonic crystal surface functionalized with aptamers.
Citation
Yousef Nazirizadeh,
Martina Gerken,
Sabrina Jahns,
Torben Karrock,
and
Florian Von Oertzen,
"Photonic Crystal Slabs for Biosensing," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1217-1220
