Microstrip Filters with Adjustable Transmission Zeros Using Inductive-coupled Open Stub-loaded Resonators
By
Kaijun Song,
    avatar

    Kaijun Song

    University of Electric Science and Technology of China, China

    Homepage

Yong Fan,
    avatar

    Yong Fan

    University of Electronic Science and Technology of China, China

    Homepage

Fei Cheng,
    avatar

    Fei Cheng

    University of Electronic Science and Technology of China, China

    Homepage

Yuan Jiang,
    avatar

    Yuan Jiang

    Nanjing Research Institute of Electronics Technology (NRIET), China

    Homepage

Xian Qi Lin
    avatar

    Xian Qi Lin

    University of Electronic Science and Technology of China, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1360-1363
Abstract

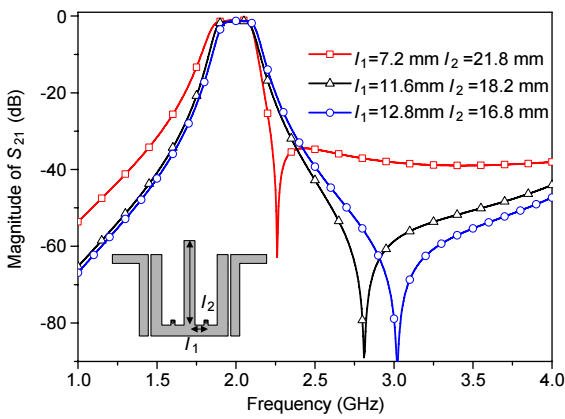

This paper presents two compact microstrip bandpass filters using inductive- coupled open stub-loaded resonator. The character of the open stub-loaded resonator is studied. One adjustable transmission zero above the pass band of the filters is got by the open stub, which greatly improves the stopband rejection of the filter. The short-circuited stub is introduced to generate inductive-coupling between the resonators. In order to create more transmission ze- ros, cross-coupling between the source and load is introduced in the second filter design. The simulated and measured results agree very well which has demonstrated the validation of our design.
Citation
Kaijun Song, Yong Fan, Fei Cheng, Yuan Jiang, and Xian Qi Lin, "Microstrip Filters with Adjustable Transmission Zeros Using Inductive-coupled Open Stub-loaded Resonators," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1360-1363
