Reconfigurable Substrate Integrated Waveguide
By
Yong Fan,
    avatar

    Yong Fan

    University of Electronic Science and Technology of China, China

    Homepage

Fei Cheng,
    avatar

    Fei Cheng

    University of Electronic Science and Technology of China, China

    Homepage

Yue Feng Hou,
    avatar

    Yue Feng Hou

    University of Electronic Science and Technology of China, China

    Homepage

Yuan Jiang,
    avatar

    Yuan Jiang

    Nanjing Research Institute of Electronics Technology (NRIET), China

    Homepage

Xian Qi Lin
    avatar

    Xian Qi Lin

    University of Electronic Science and Technology of China, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1347-1350
Abstract

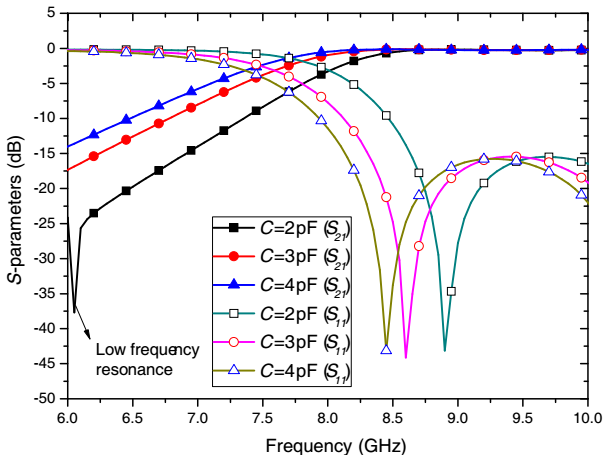

In this paper, a new substrate integrated waveguide (SIW), which is called recon- figurable substrate integrated waveguide (RCSIW) is proposed. RCSIW is derived from SIW and tunable technology which is widely used in microwave system. It is realized by replacing the side-wall metal posts of SIW with several grounded varactors which are employed to make the SIW tunable. The cutoff frequency and propagation constant can be reconfigurable by control- ling these varactors. A RCSIW is designed to test these properties with the input and output of microstrip line. Ansoft HFSS was used to get the characteristics of RCSIW. The results show the reconfiguration of RCSIW.
Citation
Yong Fan, Fei Cheng, Yue Feng Hou, Yuan Jiang, and Xian Qi Lin, "Reconfigurable Substrate Integrated Waveguide," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1347-1350
