Reconfigurable WIFI Filter with Isolation Enhancement
By
Yong Fan,
    avatar

    Yong Fan

    University of Electronic Science and Technology of China, China

    Homepage

Fei Cheng,
    avatar

    Fei Cheng

    University of Electronic Science and Technology of China, China

    Homepage

Yuan Jiang,
    avatar

    Yuan Jiang

    Nanjing Research Institute of Electronics Technology (NRIET), China

    Homepage

Xian Qi Lin,
    avatar

    Xian Qi Lin

    University of Electronic Science and Technology of China, China

    Homepage

Jia Wei Yu
    avatar

    Jia Wei Yu

    University of Electronic Science and Technology of China, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1343-1346
Abstract

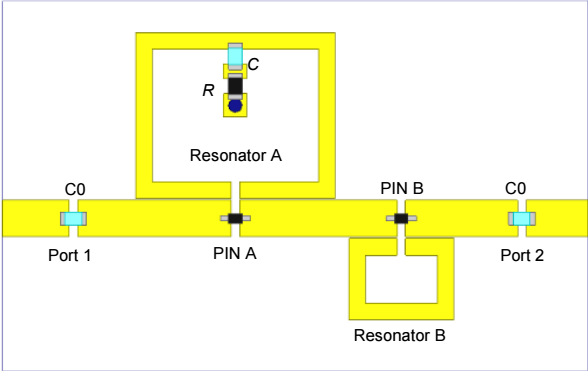

This paper presents a reconfigurable WIFI band filter with three switchable modes. Half wavelength resonators coupled with a microstirp transmission line are used to design the frequency of WIFI band. PIN switches mounted at the microstrp near the resonators are used to switch the working modes of the WIFI filter. This WIFI filter is able to work at both 2.45 GHz and 5.8 GHz with the resonators working at different modes. A dual-band band-stop mode is also available with the filter. A centrally loaded resonator technology is used to suppress the harmonic of 2.45 GHz witch would interfere the performance at 5.8 GHz. The isolation is enhanced by more than 40 dB with the structure in this paper.
Citation
Yong Fan, Fei Cheng, Yuan Jiang, Xian Qi Lin, and Jia Wei Yu, "Reconfigurable WIFI Filter with Isolation Enhancement," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1343-1346
