A Compact Circular Polarized Tag Antenna in UHF Band for Metallic Object Application
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)609-611
Abstract

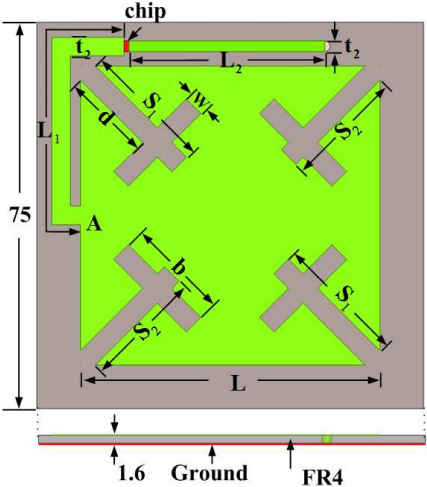

In this article, a compact RFID tag antenna operated on UHF band with circular polarization is proposed. The antenna is comprised of a radiating square with two pairs of unequal crossed slots to produce a circularly polarized (CP) radiation and a simple quarter-wave microstrip line to feed the patch. A tag chip is embedded between the microstrip line and a short- circuited stub line. The simulated result for −3-dB power reflection coefficient (PRC) is about 27 MHz (904–931 MHz) that covers the RFID bands of North and South America and Taiwan (920–928 MHz) and its corresponding simulated 3-dB axial-ratio (AR) bandwidth is about 7 MHz (910–917 MHz). The overall antenna size is 75 mm × 75 mm × 1.6 mm at 915 MHz. The results show a perfect circularly polarized radiation.
Citation
Jun Hu, Qi Liu, Yusha Liu, and Bo Xu, "A Compact Circular Polarized Tag Antenna in UHF Band for Metallic Object Application," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)609-611
