PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
Temperature Dependence of Liquid Filled Photonic Crystal Fibers
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)565-568
Abstract

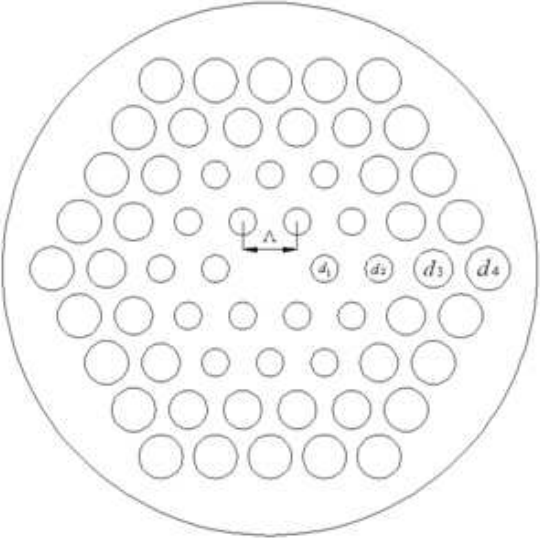

The effects of temperature on dispersion, effective area and nonlinearity of an index- guiding hexagon photonic crystal fiber filled by ethanol are described by using the vectorial beam propagation method, and a nearly zero ultra flattened dispersion fiber is optimized design with the dispersion coefficients of 0 ± 0.5 ps/(nm · km) at the wavelength of 1.46 µm to 1.65 µm. The results indicate that increasing temperature could lead to increase dispersion and nonlinearity, but decrease the dispersion slope so as to flatten the dispersion. The result provides theoretical base for designing continuously tailoring dispersion optical communication components or optical sensing devices.
Citation
Shanglin Hou, Jingli Lei, Xiaoxiao Li, and Yanjun Liu, "Temperature Dependence of Liquid Filled Photonic Crystal Fibers," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)565-568
References
