Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1012-1015
Abstract

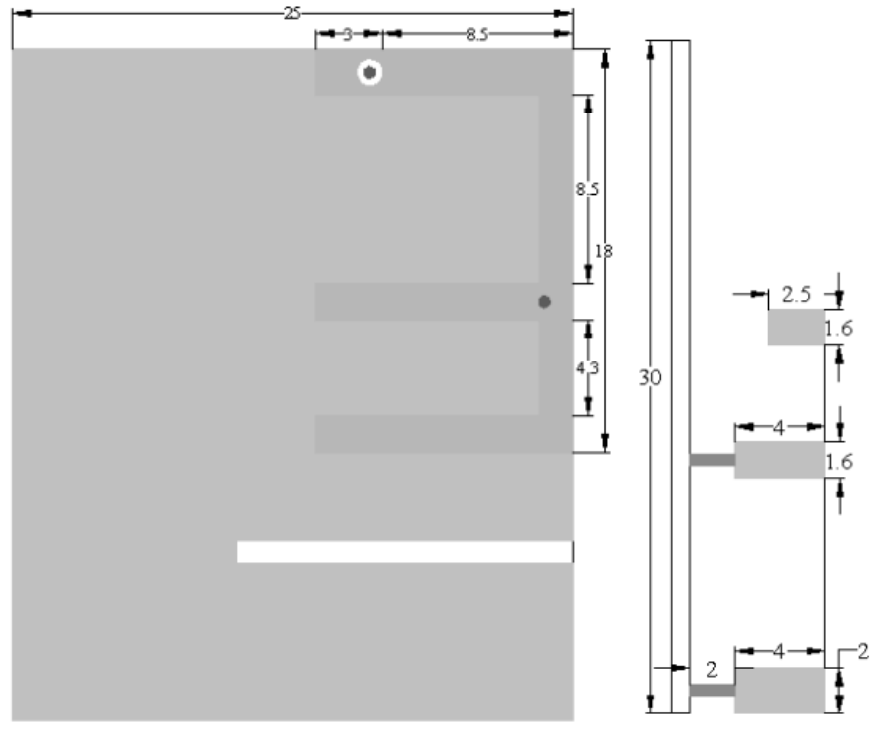

A novel tri-band PIFA antenna operating at WLAN frequency is proposed. The
antenna has a two-layer structure, resembling a capital E. By folding the E-shaped structure
down, It can largely reduce the size of the antenna. The antenna is feed by the probe, which
extends from the ground plane to connect to the radiating strip. The short-circuit strip connects
with the ground plane is realized by the probe or shorting wall. The whole structure is the
three-dimension version of the simple inverted-F antenna. Three electric current path consititute
three resonant mode, corresponding to 2.4/5.2/5.8 GHz, respectively.
Citation
Yuanhua Hu,
and
Hui-Fen Huang,
"A Triple-band Planar Inverted-F Antenna for WLAN Application," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1012-1015
