Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1221-1223
Abstract
We experimentally demonstrate an ultra-sensitive and polymer-based two-dimensional
photonic crystal (2D-PhC) cavity optical sensor. The device was fabricated with polymer on sil-
icon substrate by using electron beam lithography (EBL) and operated near its resonance at

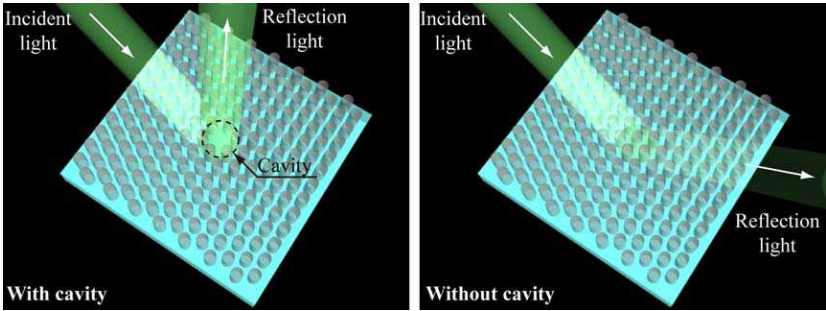

532 nm. Using 2D-PhC cavity optical sensor, reflection intensity was 60 times higher than with-
out cavity. In addition, coating the sensor surface using layer-by-layer (LbL) assembly method-
ology by deposition of cationic (poly(sodium 4-styrenesulfonate)) and anionic (poly(allylamine
hydrochloride)) layers for produces a different reflection intensity change. By deposition of LbL
layers using 2D-PhC cavity optical sensor, reflection intensity was decreased systematically and
high sensitively (at least 1 layer (thickness: 2 nm [1])). Furthermore, using this optical sensor,
high sensitive detection of DNA hybridization could be achieved.
Citation
Tatsuro Endo,
"Polymer-based Two Dimensional Photonic Crystal for Biosensing Application," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1221-1223
