PhotonIcs and Electromagnetics Research Symposium,
also known as Progress In Electromagnetics Research Symposium
PIERS Proceedings
Published: 2015-08-28
Two Dimensional Polarization Independent All-dielectric Left-handed Metamaterial in Free Space
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)703-706
Abstract

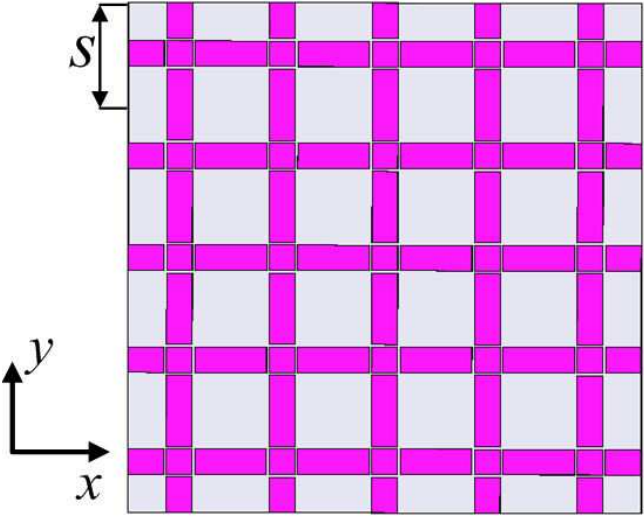

In this paper, we proposed a type of all-dielectric metamaterial(ADM) with quasi- continuous structure, which can inspire quasi-continuous electric and magnetic responses to ac- quire left-handed properties in free space. The proposed model utilizing dielectric rods and cubes as sub-wavelength inclusions. A two dimensional polarization independent left-handedness can be achieved with the frequencies at C band. The rods resonant under characteristic modes can generate negative permittivity and permeability, whereas the cubes are used in the non-resonant modes to assure the continuity of the displacement currents in dielectric inclusions. The simulta- neously double negative properties can be interpreted by electric and magnetic fields distributions of the dielectric inclusions near 7.6 GHz under normal incidence with polarization angle 45◦ . The further study on transmission spectra and effective refractive indexes of the model with different polarization angles shows that the left-handed property is insensitive to different polarization angles due to the π/2 rotation symmetry of the ADM. The proposed ADM can be easily realized at infrared and optical frequencies with dielectric inclusions.
Citation
Bai Du, Mingde Feng, Shaobo Qu, Jun Wang, and Zhuo Xu, "Two Dimensional Polarization Independent All-dielectric Left-handed Metamaterial in Free Space," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)703-706
