Design of High Isolation Diplexer with Source-load Coupling
By
Fu-Chang Chen,
    avatar

    Fu-Chang Chen

    South China University of Technology, China

    Homepage

Qing-Xin Chu,
    avatar

    Qing-Xin Chu

    South China University of Technology, China

    Homepage

Fu-Xiang Guo,
    avatar

    Fu-Xiang Guo

    South China University of Technology, China

    Homepage

Hao-Tao Hu
    avatar

    Hao-Tao Hu

    South China University of Technology, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1327-1329
Abstract

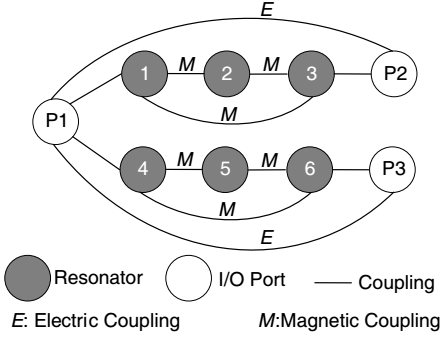

A microstrip diplexer with very high isolation is proposed. The diplexer comprises two third-order CT filters and a connecting line between them. The improved CT filter has three adjustable transmission zeros through leading in the coupling coefficient between the source and load. By locating the transmission zero of one channel at the passband of the other channel, very high isolation of the diplexer can be achieved. Good agreements are also achieved between measurement and simulation.
Citation
Fu-Chang Chen, Qing-Xin Chu, Fu-Xiang Guo, and Hao-Tao Hu, "Design of High Isolation Diplexer with Source-load Coupling," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1327-1329
