Shielding and Mutual Coupling Effect of Ground Penetrating Radar Antenna
By
Farah Salwani Abdullah,
    avatar

    Farah Salwani Abdullah

    Universiti Malaysia Perlis (UniMAP), Malaysia

    Homepage

Hana Abdull Halim,
    avatar

    Hana Abdull Halim

    Universiti Malaysia Perlis (UniMAP), Malaysia

    Homepage

Mohd Faizal Jamlos,
    avatar

    Mohd Faizal Jamlos

    Universiti Malaysia Perlis (UniMAP), Malaysia

    Homepage

Mohd Nazri A. Karim,
    avatar

    Mohd Nazri A. Karim

    Universiti Malaysia Perlis (UniMAP), Malaysia

    Homepage

Mohd Fareq Abd Malek,
    avatar

    Mohd Fareq Abd Malek

    Universiti Malaysia Perlis (UniMAP), Malaysia

    Homepage

Hassan Nornikman
    avatar

    Hassan Nornikman

    Universiti Teknikal Malaysia Melaka (UTeM), Malaysia

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)209-212
Abstract

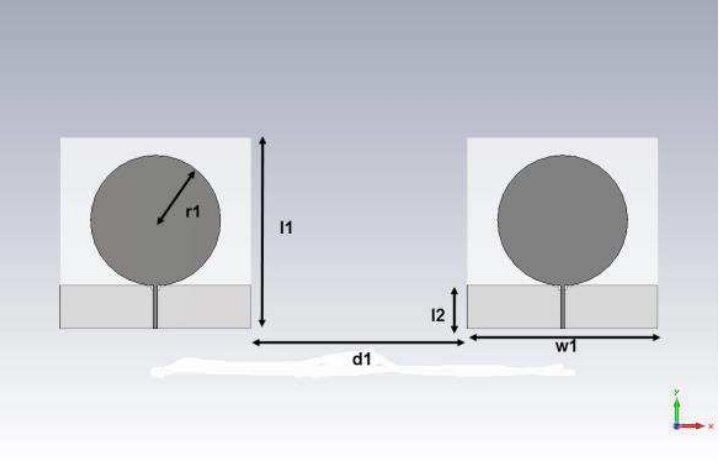

This paper discusses the shielding and mutual coupling effect of ground penetrat- ing radar (GPR) antenna for buried object detection. In this study, bi-static radar system is considered. The antenna used in this system is designed at wide operational frequency, 0.5 GHz to 3.0 GHz. To observe the shielding effect and mutual coupling between antennas, two antennas with the same operating frequency are placed in an individual shielded box. The study is accom- plished using Computer Simulation Technology (CST) software. The antenna is designed using substrate Taconic TLY-5 with dielectric constant of 2.2 and thickness of 1.57 mm. The study and discussion includes the simulated results of radiation pattern, reflection coefficient and gain.
Citation
Farah Salwani Abdullah, Hana Abdull Halim, Mohd Faizal Jamlos, Mohd Nazri A. Karim, Mohd Fareq Abd Malek, and Hassan Nornikman, "Shielding and Mutual Coupling Effect of Ground Penetrating Radar Antenna," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)209-212
References

Download Full Article (PDF ) Wire media illustration
