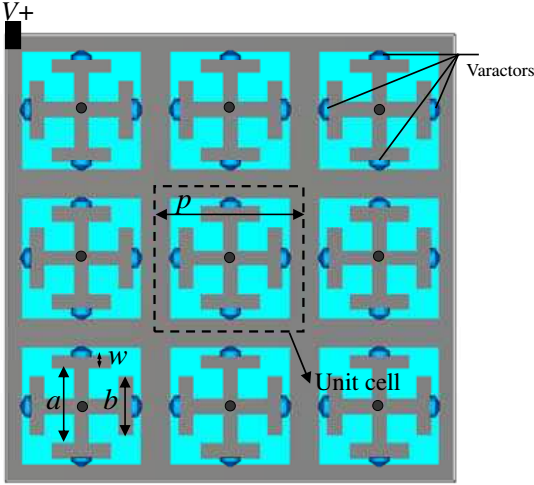

In this paper, a dual-polarized frequency selective surface (FSS) with wide fre- quency tunability and simple bias network is presented. The FSS is composed of two-layered metallic structures. The top layer is etched with Jerusalem crosses and metallic grids. Varactor diodes are positioned between the grids and the Jerusalem crosses. The bottom layer is etched with crossed metallic lines. The two-layered structures are connected to each other with an array of plated vias. Based on this configuration, a DC path is created for biasing the varactors with the grids and crossed metallic lines. The FSS exhibits dual polarized performances using such a simple bias network. Numerical results obtained by full wave simulation method show that by altering the capacitance of the varactors from 0.2 to 1.0 pF, wide frequency tunability from 6.85 GHz to 3.7 GHz can be achieved. Design procedure and results of the FSS are presented and discussed.

Citation

Jiafu Wang, Yongfeng Li, Hua Ma, Shaobo Qu, Xin-Hua Wang, Zhuo Xu, Mingbao Yan, Hangying Yuan, Lin Zheng, and Hang Zhou, "Dual-polarized FSS with Wide Frequency Tunability and Simple Bias Network," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)109-112
