Design and Study of Multiband Microstrip Antenna
By
Lei Chang,
    avatar

    Lei Chang

    No. 36 Research Institute of China Electronics Technology Group Corporation, China

    Homepage

Yu-Feng Wang,
    avatar

    Yu-Feng Wang

    No. 36 Research Institute of CETC, China

    Homepage

Yufeng Yu,
    avatar

    Yufeng Yu

    Hangzhou Dianzi University, China

    Homepage

Jian-Qiang Zhang
    avatar

    Jian-Qiang Zhang

    No. 36 Research Institute of CETC, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1914-1917
Abstract

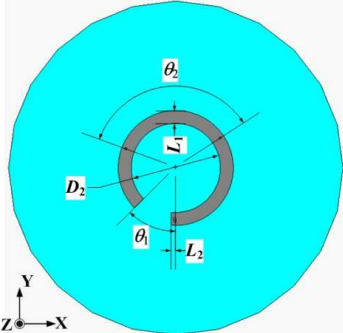

A multiband antenna which is fed by a SMA coaxial probe is investigated in this paper. The proposed antenna is composed of a circular patch and a loop microstrip line. By introducing a loop microstrip line and three probes feeding for the circular patch, the proposed antenna delivers the multiband impedance matching performance. The simulated result shows that the antenna has three frequency bands covering 1.254–1.404 GHz, 1.653–1.746 GHz and 2.142–10.752 GHz for VSWR < 3. Details of the antenna design and results are presented.
Citation
Lei Chang, Yu-Feng Wang, Yufeng Yu, and Jian-Qiang Zhang, "Design and Study of Multiband Microstrip Antenna," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1914-1917
