Patch Antenna with Electrically Tunable Ferrite-ferroelectric Bilayer
By
William Thomas Joines,
    avatar

    William Thomas Joines

    Duke University, USA

    Homepage

Qing Huo Liu,
    avatar

    Qing Huo Liu

    Eastern Institute of Technology, Ningbo, China

    Homepage

Ronald J. Spiegel,
    avatar

    Ronald J. Spiegel

    Duke University, USA

    Homepage

Kai-Da Xu,
    avatar

    Kai-Da Xu

    Xi'an Jiaotong University, China

    Homepage

Yonghong Zhang
    avatar

    Yonghong Zhang

    University of Electronic Science and Technology of China, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1772-1774
Abstract

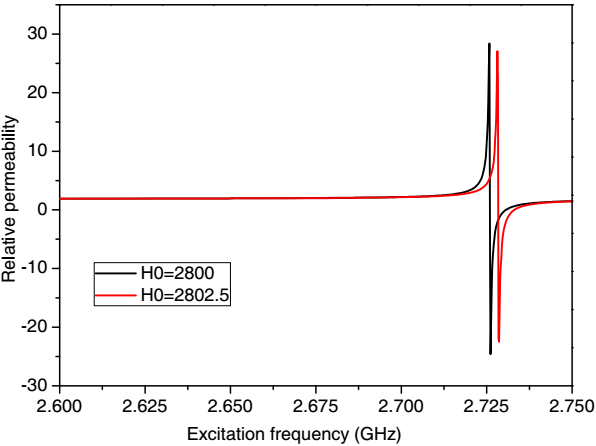

A coaxial-fed patch antenna with a ferrite-ferroelectric bilayer above a regular alumina substrate has been designed and analyzed. The ferrite-ferroelectric bilayer, multiferroic heterostructure, consists of a near-single-crystal ferrite yttrium iron garnet (YIG) film layer and a ferroelectric ceramic barium strontium titanate (BST) film layer with thicknesses of 1 µm and 0.5 µm, respectively. When the electric field applied across the BST layer changes from 2.5 V/um to 15 V/um, its permittivity will be tuned, thus the operating frequency of the antenna will shift as well. We also analyze the influence of the static magnetic field variation to the operating frequency of the antenna.
Citation
William Thomas Joines, Qing Huo Liu, Ronald J. Spiegel, Kai-Da Xu, and Yonghong Zhang, "Patch Antenna with Electrically Tunable Ferrite-ferroelectric Bilayer," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1772-1774
