1 Gbps Directed Optical Decoder Based on Two Cascaded Microring Resonators

By

Lin Yang,

Lin Yang

Institute of Semiconductors, Chinese Academy of Sciences, China

Qiaoshan Chen,

Qiaoshan Chen

Institute of Semiconductors, Chinese Academy of Sciences, China

Lei Zhang,

Lei Zhang

Institute of Semiconductors, Chinese Academy of Sciences, China

Jianfeng Ding,

Jianfeng Ding

Institute of Semiconductors, Chinese Academy of Sciences, China

Yonghui Tian,

Yonghui Tian

Lanzhou University, China

Fanfan Zhang,

Fanfan Zhang

Institute of Semiconductors, Chinese Academy of Sciences, China

Ping Zhou

Ping Zhou

Institute of Semiconductors, Chinese Academy of Sciences, China

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)909-914

Abstract

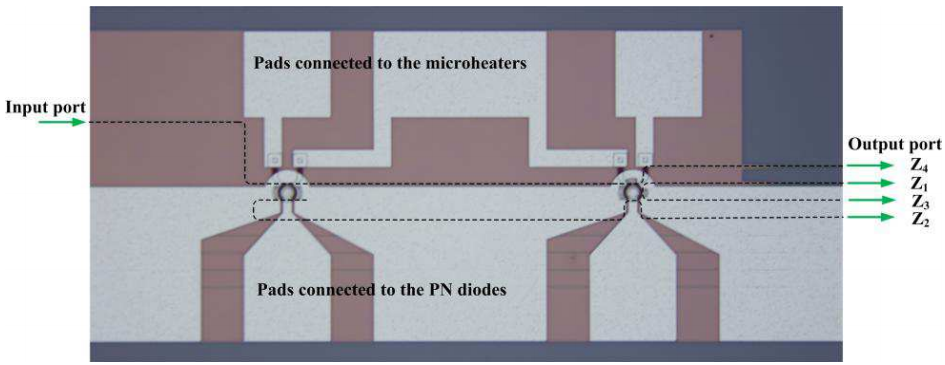

We report an electro-optic directed optical decoder based on two cascaded micror- ing resonators. PN junctions embedded around the MRRs are employed to modulate the MRRs through the carrier-injection scheme. The optical decoding function from a 2-bit electrical signal to a 4-bit optical signal at the speed of 1 Gbps is performed successfully by the device.

Citation

Lin Yang, Qiaoshan Chen, Lei Zhang, Jianfeng Ding, Yonghui Tian, Fanfan Zhang, and Ping Zhou, "1 Gbps Directed Optical Decoder Based on Two Cascaded Microring Resonators," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)909-914
