A Miniaturized Unidirectional Moxon Antenna for UHF RFID Tags
By
Qi Liu,
Bo Xu,
Shuai Zhang
    avatar

    Shuai Zhang

    Aalborg University, Denmark

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)612-615
Abstract

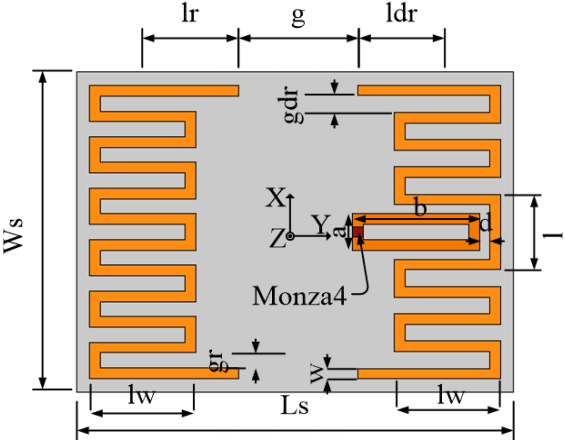

A unidirectional moxon antenna for UHF RFID tags is proposed. Meander lines are applied in this structure for the size reduction. An inductively coupled feeding loop is used to match the impedance between the antenna and the chip. A gain of 4.48 dBi and an outstanding front-to-back ratio of 17.7 dB are achieved with a very broad frontal lobe (half power beamwidth is 70 degrees in the x-y plane and 150 degrees in y-z plane).
Citation
Qi Liu, Bo Xu, and Shuai Zhang, "A Miniaturized Unidirectional Moxon Antenna for UHF RFID Tags," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)612-615
References

Download Full Article (PDF ) Wire media illustration
