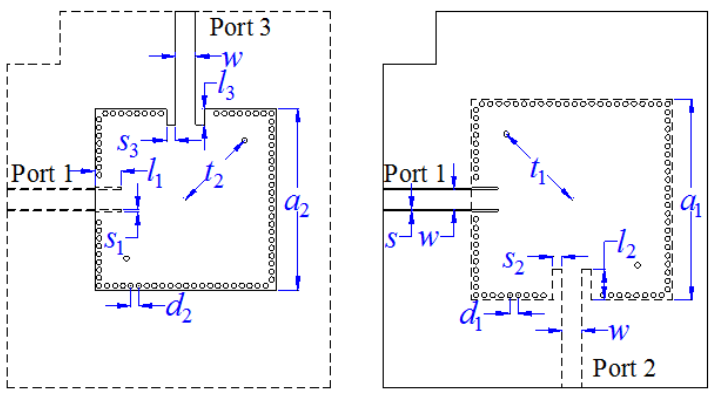

This paper presents a novel approach for designing compact integrated substrate waveguide diplexer fed by coplanar-waveguide. To reduce the size, conventional T -junction for impedance matching and isolation at the input port is replaced by the coplanar-waveguide- fed structure. It also contributes to size reduction of the diplexer. Two dual-mode integrated substrate waveguide filters are vertically stacked which results in further size reduction. A diplexer with lower and upper channels centered at 10 and 11 GHz, respectively, is designed to verify the proposed concept. Good agreements are achieved between measurement and simulation.

Citation

Kaijun Song, Yong Fan, Fei Cheng, Yuan Jiang, and Xian Qi Lin, "A Compact Substrate Integrated Waveguide Diplexer Using Dual-mode Filters," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1351-1355
