Rectangular DRA Reflectarray with an Inclined Top-loading Micostrip Patch
By
Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)878-881
Abstract

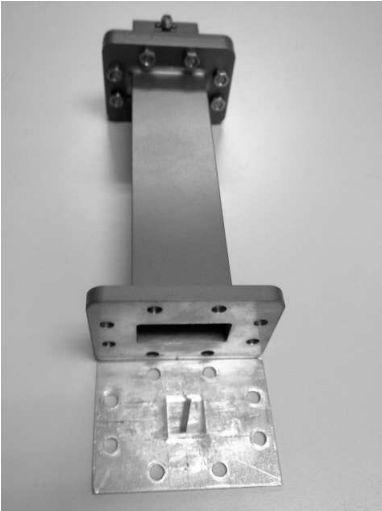

This paper presentsa dielectric resonator antenna (DRA) unit element that can be used for designing a compact reflectarray. Here, a rectangular DRA is incorporated with a top-loading metal strip where the strip inclination angle is used as the phase-shifting parameter. When modeled using the waveguide model, it is found that this DRA reflectarray unit element is able to give a reflection phase range of 162.29◦ . To understand further, the same unit element is also simulated using the Floquet model. It is found that the separation distance of the elements can affect the phase range and gradient of the S-curve significantly.
Citation
Eng Hock Lim, Fook-Loong Lo, and Hong Yik Wong, "Rectangular DRA Reflectarray with an Inclined Top-loading Micostrip Patch," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)878-881
