Impact on the Performance of Compact Antenna Test Range due to Surface Deviation of the Reflector
By
Ming Bai,
    avatar

    Ming Bai

    Beihang University, China

    Homepage

Xiao Fang,
    avatar

    Xiao Fang

    Beihang University, China

    Homepage

Shihao Ji,
    avatar

    Shihao Ji

    Beihang University, China

    Homepage

Zhao Liu,
    avatar

    Zhao Liu

    Beihang University, China

    Homepage

Xiuzhu Ye
    avatar

    Xiuzhu Ye

    Beijing Institute of Technology, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)771-775
Abstract

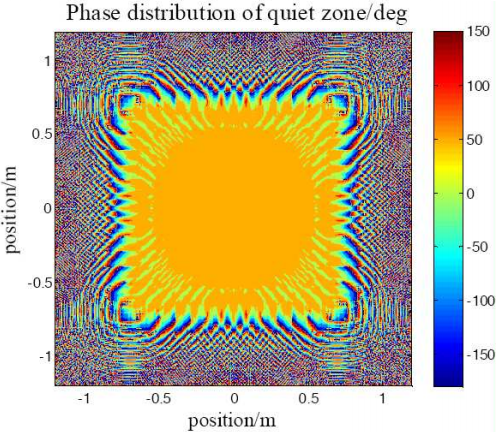

The fabrication precision of designed compact antenna test range (CATR) impacts the performance of quiet zone, especially in millimeter wave range. In this paper, several surface deviations of the reflector and their influence on the quiet zone are analyzed. Comparing the data of deviated reflector with those of the ideal reflector, it is found that the sensitivity of quite zone to the surface deviation increases with operating frequency. In addition, in order to ensure the performance of CATR, it is found that 1/560 of wavelength is the upper limitation for mechanical production. At last, guidance for millimeter wave CATR fabrication is provided.
Citation
Ming Bai, Xiao Fang, Shihao Ji, Zhao Liu, and Xiuzhu Ye, "Impact on the Performance of Compact Antenna Test Range due to Surface Deviation of the Reflector," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)771-775
