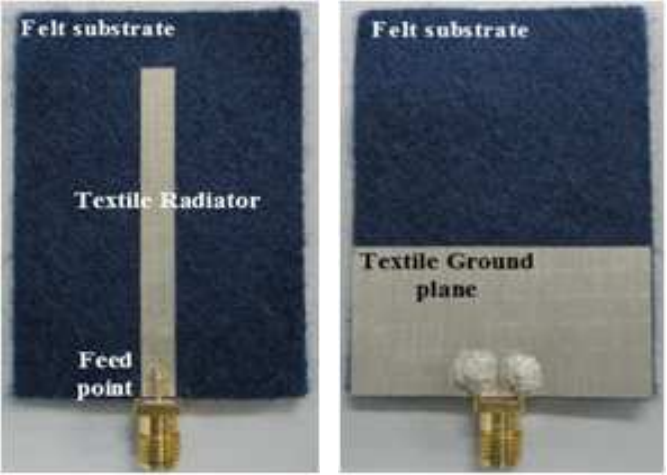

This paper presents the multiple antennas dynamic body-to-body channel in an in- door environment by utilizing quarter-wave planar textile monopole (TM) antennas at 2.45 GHz. The single input and multiple output (SIMO) measurement system uses a signal generator and two spectrum analyzers, to generate (transmit) continuous wave and measure (receive) the S21 parameters. During each measurement, two users are positioned at a 1 m distance where several body movements are performed, such as walking, sitting, running, jumping, bending and rota- tion of arms. The measured body-to-body path loss is evaluated and characterized by fitting to five well-known statistical distributions. The results exhibit that the Lognormal distribution provided the best fit for most of multiple antenna body-to-body dynamic link path loss in most of body movements performed in the experiment.

Citation

Farah Salwani Abdullah, Noor Anida Abu Talib, Fairul Afzal Ahmad Fuad, V. Ganesan, K. K. Goh, Mohd Fareq Bin Abdul Malek, and Hasliza Binti A. Rahim, "Statistical Characterization of Multiple Antennas Dynamic Body-to-body Radio Propagation Channel," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)686-690
