Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)548-551
Abstract
A compact plasmonic 4-way wavelength splitter with band-stop filters at microwave
frequencies is proposed. The splitter is based on specially designed plasmonic structures and

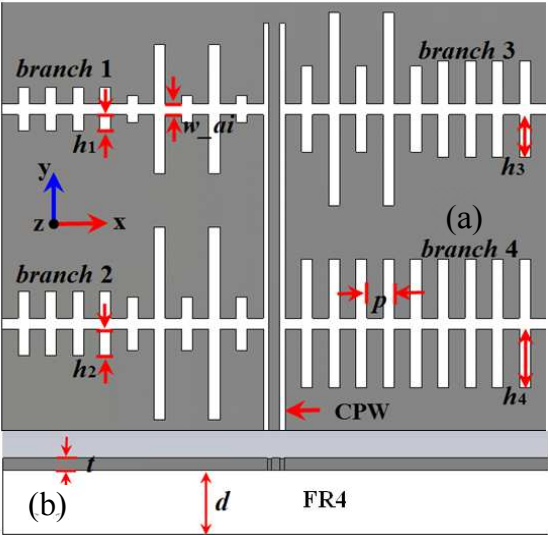

band-stop filters. The plasmonic structures are placed on the dielectric substrate and consist of
two metal gratings with corrugated grooves in the inner surface, which are suitable for integration
with planar circuits. The band-stop filters are constructed by composite-periodic grating struc-
tures with different groove depths, which can improve the isolations between different branches.
The plasmonic 4-way splitter is investigated numerically based on full-wave simulations at mi-
crowave frequencies. Electromagnetic (EM) waves at the designed frequencies are confined and
guided along different branches with good isolations.
Citation
Bao Jia Yang,
and
Yong Jin Zhou,
"A Compact Plasmonic 4-way Wavelength Splitter for Planar Circuits," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)548-551
