Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1754-1757
Abstract
The high frequency (HF) PO/GO computation based on ray tracing approach
is presented to fast compute the EM scattering from arbitrary dielectric target with electric-
large size. For lossy medium, the generalized Snell-Descartes and Fresnel laws are introduced
to determine the propagation direction of equi-phase and equi-amplitude plane of reflection and
refraction wave, which is the main difference from the classical ray tracing approach. The GO
reflection and refraction rays are traced according to the propagation direction of equi-phase
surface step by step. Accompany with the wave propagation, the phase delay is computed
along the normal direction of equi-phase, and the energy attenuation is computed along the
normal direction of equi-amplitude. On the exiting surface, the PO integration of surface field
is considered for outgoing field computation. For lossy dielectric surface, the PO surface field
is inhomogeneous, and this paper derives an analytical integral formula for arbitrary triangular
patch to avoid the numerical integral on the dense meshing of 1/8 wavelength. In numerical
simulation, the target is constructed with triangular dielectric patches according to its geometry

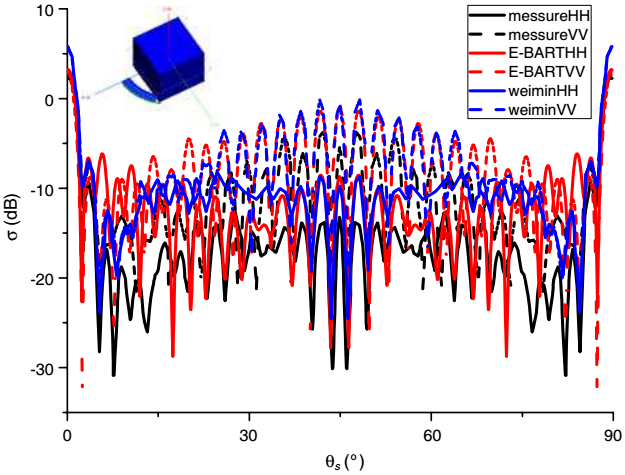

CAD model, not need to mesh according to the electric wavelength. Several models, such as
multi-layer dielectric plate, dielectric coating plate, lossy dielectric cubic, et al., are used for
validation and comparison with FEKO software, taking the requirements of memory and CPU
time into consideration. The numerical simulation indicates that the new HF method is valid
and efficient for electric-large target with arbitrary dielectric medium.
Citation
Hongxia Ye,
and
Hao Zheng,
"EM Scattering Computation of Electric-large Lossy Dielectric Target Based on Ray Tracing," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9,Page(s)1754-1757
