A Novel Compact UWB Antenna with Triple Band-notched Characteristics
By
Bo-Rui Bian,
    avatar

    Bo-Rui Bian

    Nanjing University of Aeronautics and Astronautics, China

    Homepage

Lin Chen,
    avatar

    Lin Chen

    Nanjing University of Aeronautics and Astronautics, China

    Homepage

Xiang-Kun Kong,
    avatar

    Xiang-Kun Kong

    Nanjing University of Aeronautics and Astronautics, China

    Homepage

Shaobin Liu,
    avatar

    Shaobin Liu

    Nanjing University of Aeronautics and Astronautics, China

    Homepage

Zhiwen Mao
    avatar

    Zhiwen Mao

    Nanjing University of Aeronautics and Astronautics, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)997-1000
Abstract

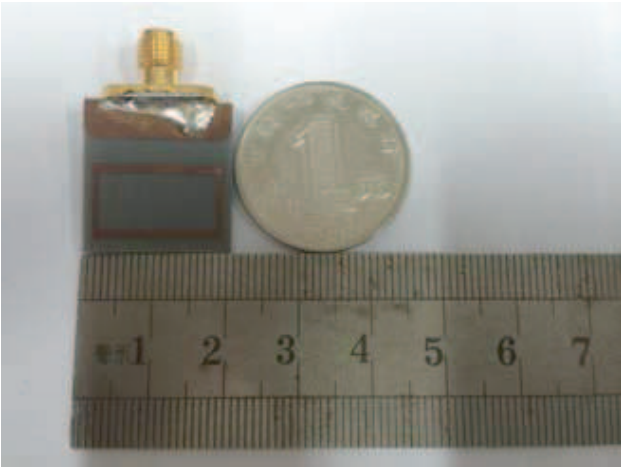

In this article, a novel compact ultra-wideband (UWB) planar monopole antenna with tri-notched bands is presented. The proposed antenna is fed by a microstrip line and a partial ground plane. The antenna achieves an operating bandwidth ranging from 2.9 to more than 11 GHz and triple band-notched properties of 3.22–3.91, 5.15–5.44, 5.70–5.91 GHz. Throughout this article, the simulated and experimental results of impedance characteristic, gain, and radiation patterns are presented and discussed. The proposed antenna has an overall dimension of 20 × 21.1 mm2 .
Citation
Bo-Rui Bian, Lin Chen, Xiang-Kun Kong, Shaobin Liu, and Zhiwen Mao, "A Novel Compact UWB Antenna with Triple Band-notched Characteristics," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)997-1000
