An Optimal Match between the Ground-based Laser and a Relay Mirror System

By

Xiuxiang Chu,

Xiuxiang Chu

Zhejiang Forestry University, China

Chunmei Chai,

Chunmei Chai

Zhejiang Forestry University, China

Yongte Jiang,

Yongte Jiang

Zhejiang Forestry University, China

Lipeng Luo,

Lipeng Luo

Zhejiang Forestry University, China

Haiqiang Tong,

Haiqiang Tong

Zhejiang Forestry University, China

Chunnan Zhang

Chunnan Zhang

Zhejiang Forestry University, China

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)2731-2735

Abstract

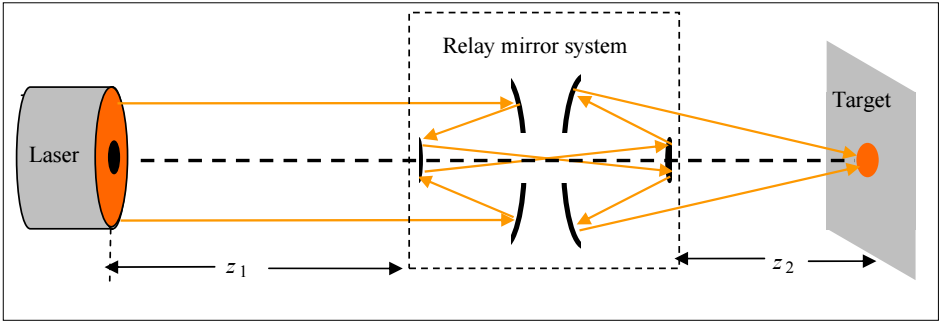

Based on the application of a relay mirror system, we study the intensity distribu- tion and receiving efficiency of laser beams through a relay mirror system. When Fresnel number is big, this studies shows that the coupling efficiency of power between ground-based telescope and relay mirror is high for collimated beams. Due to small spot and high intensity concentrated on central obscuration, beams focusing to relay mirror is not suitable. For the reason that the distance between the laser source and relay mirror is fixed, and the distance from the relay mirror to a target is various, the intensity distribution is changed with different target. It is impossible to keep in high coupling efficiency when beams focus to target directly through a relay mirror system.

Citation

Xiuxiang Chu, Chunmei Chai, Yongte Jiang, Lipeng Luo, Haiqiang Tong, and Chunnan Zhang, "An Optimal Match between the Ground-based Laser and a Relay Mirror System," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)2731-2735

References

Download Full Article (PDF ) Wire media illustration
