A Novel UWB Antenna with Dual-band Notched Characteristics
By
Jiangang Liang,
    avatar

    Jiangang Liang

    Air Force Engineering University, China

    Homepage

Yongfan Lin,
    avatar

    Yongfan Lin

    Air Force Engineering University, China

    Homepage

Rui Wu,
    avatar

    Rui Wu

    Air Force Engineering University, China

    Homepage

Zhiyong Xu,
    avatar

    Zhiyong Xu

    Air Force Engineering University, China

    Homepage

Zi-Mu Yang
    avatar

    Zi-Mu Yang

    Air Force Engineering University, China

    Homepage

Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1467-1470
Abstract

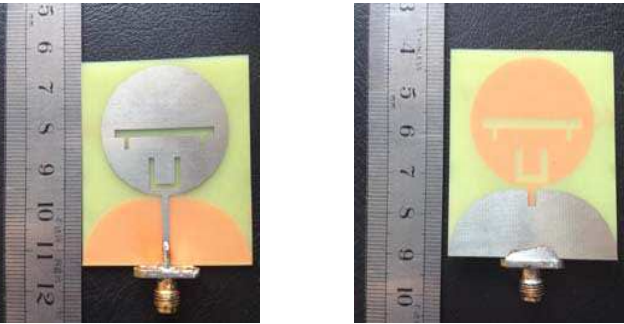

A novel omnidirectional ultra-wide band (UWB) antenna with dual band-notched characteristics are designed in this paper. To obtain extended impedance band-width, a small rectangular-shaped defected ground structure is used. The antenna has a good performance on impedance characteristics withQthe bandwidth from 2.0 GHz to 13.7 GHz. A U-shaped defected patch structure as well as a -shaped defected patch structure are applied to obtain a dual band-notched characteristics at bandwidth of 5.29 GHz ∼ 6.608 GHz and 3.30 GHz ∼ 3.87 GHz, covering WIFI (5.470 GHz ∼ 5.725 GHz) and WIMAX (3.3 GHz–3.8 GHz) working frequency bandwidth. The problem of interference among spectrum can be solved effectively using this antenna.
Citation
Jiangang Liang, Yongfan Lin, Rui Wu, Zhiyong Xu, and Zi-Mu Yang, "A Novel UWB Antenna with Dual-band Notched Characteristics," Proceedings of 2015 Photonics & Electromagnetics Research Symposium, Prague, July 6 - 9，Page(s)1467-1470
